Discussion 9: Trees, Efficiency

Trees

For a Tree instance t:

  • Its root label can be any value, and t.label evaluates to it.
  • Its branches are all Tree instances, and t.branches evaluates to a list of branches, which is a list of Tree instances.
  • It is called a leaf if it has no branches, and t.is_leaf() returns whether t is a leaf.
  • A new Tree with the same root label and branches can be constructed with Tree(t.label, t.branches).

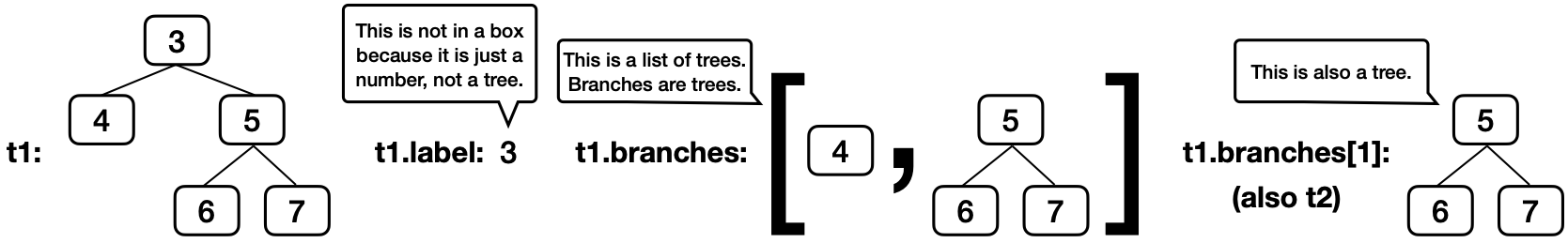

Here's an example tree t1, for which its branch t1.branches[1] is t2.

t2 = Tree(5, [Tree(6), Tree(7)])
t1 = Tree(3, [Tree(4), t2])

Example Tree

A path is a sequence of nodes in which each is the parent of the next.

You don't need to know how the Tree class is implemented in order to use it correctly, but here is the implementation from lecture.

class Tree:
    """A tree is a label and a list of branches."""
    def __init__(self, label, branches=[]):
        self.label = label
        for branch in branches:
            assert isinstance(branch, Tree)
        self.branches = list(branches)

    def is_leaf(self):
        return not self.branches

    # The rest of the class just determines how trees are displayed.

    def __repr__(self):
        if self.branches:
            branch_str = ', ' + repr(self.branches)
        else:
            branch_str = ''
        return 'Tree({0}{1})'.format(repr(self.label), branch_str)

    def __str__(self):
        return '\n'.join(self.indented())

    def indented(self):
        lines = []
        for b in self.branches:
            for line in b.indented():
                lines.append('  ' + line)
        return [str(self.label)] + lines

Q1: Min Tree

What value is bound to result?

get_label = lambda t: t.label
result = min(max([t1, t2], key=get_label).branches, key=get_label).label

Here's a quick refresher on how key functions work with max and min,

max(s, key=f) returns the item x in s for which f(x) is largest.

>>> s = [-3, -5, -4, -1, -2]
>>> max(s)
-1
>>> max(s, key=abs)
-5
>>> max([abs(x) for x in s])
5

Therefore, max([t1, t2], key=get_label) returns the tree with the largest label, in this case t2.

Q2: Has Path

Implement has_path, which takes a Tree instance t and a list p. It returns whether there is a path from the root of t with labels p. For example, t1 has a path from its root with labels [3, 5, 6] but not [3, 4, 6] or [5, 6].

Important: Before trying to implement this function, discuss these questions from lecture about the recursive call of a tree processing function:

  • What recursive calls will you make?
  • What type of values do they return?
  • What do the possible return values mean?
  • How can you use those return values to complete your implementation?

If you get stuck, you can view our answers to these questions by clicking the hint button below.

What recursive calls will you make?

As you usual, you will call has_path on each branch b. You'll make this call after comparing p[0] to t.label, and so the second argument to has_path will be the rest of p: has_path(b, p[1:]).

What type of values do they return?

has_path always returns a bool value: True or False.

What do the possible return values mean?

If has_path(b, p[1:]) returns True, then there is a path through branch b for which p[1:] are the node labels.

How can you use those return values to complete your implementation?

If you have already checked that t.label is equal to p[0], then a True return value means there is a path through t with labels p using that branch b. A False value means there is no path through that branch, but there might be path through a different branch.

Run in 61A Code

Efficiency

Tips for finding the order of growth of a function's runtime:

  • If the function is recursive, determine the number of recursive calls and the runtime of each recursive call.
  • If the function is iterative, determine the number of inner loops and the runtime of each loop.
  • Ignore coefficients. A function that performs n operations and a function that performs 100 * n operations are both linear.
  • Choose the largest order of growth. If the first part of a function has a linear runtime and the second part has a quadratic runtime, the overall function has a quadratic runtime.
  • In this course, we only consider constant, logarithmic, linear, quadratic, and exponential runtimes.

Q3: The First Order...of Growth

What is the efficiency of rey?

def rey(finn):
    poe = 0
    while finn >= 2:
        poe += finn
        finn = finn / 2
    return

Choose one of:

  • Constant
  • Logarithmic
  • Linear
  • Quadratic
  • Exponential
  • None of these

What is the efficiency of mod_7?

def mod_7(n):
    if n % 7 == 0:
        return 0
    else:
        return 1 + mod_7(n - 1)

Choose one of:

  • Constant
  • Logarithmic
  • Linear
  • Quadratic
  • Exponential
  • None of these
