Lab 12 Solutions

lab12.zip

Solution Files

Required Questions

Q1: Add Links

Write a function add_link that takes in two linked lists, link1 and link2, and returns a new linked list that concatenates link2 to the end of link1.

You may assume that the input list is shallow; none of its elements are themselves another linked list.

Note: You may not assume that the input lists are of the same length.

Challenge (Optional): Do NOT assume that the input list is shallow (i.e. your input can be a nested linked list). Hint: use the built-in type function.

def add_links(link1, link2):
    """Adds two Links, returning a new Link

    >>> l1 = Link(1, Link(2))
    >>> l2 = Link(3, Link(4, Link(5)))
    >>> new = add_links(l1, l2)
    >>> print(new)
    (1 2 3 4 5)
    >>> new2 = add_links(l2,l1)
    >>> print(new2)
    (3 4 5 1 2)
    """
    if link1 is not Link.empty:
        return Link(link1.first, add_links(link1.rest, link2))
    elif link2 is not Link.empty:
        return Link(link2.first, add_links(link1, link2.rest))
    else:
        return Link.empty

# Iterative version (using reverse)
def add_links(link1, link2):
    result = Link.empty
    while link1 is not Link.empty:
        result = Link(link1.first, result)
        link1 = link1.rest
    while link2 is not Link.empty:
        result = Link(link2.first, result)
        link2 = link2.rest
    return reverse(result)

Use Ok to test your code:

python3 ok -q add_links

Q2: Preorder

Define the function preorder, which takes a Tree instance and returns a list of all the labels in the tree in the order that they appear when the tree is printed.

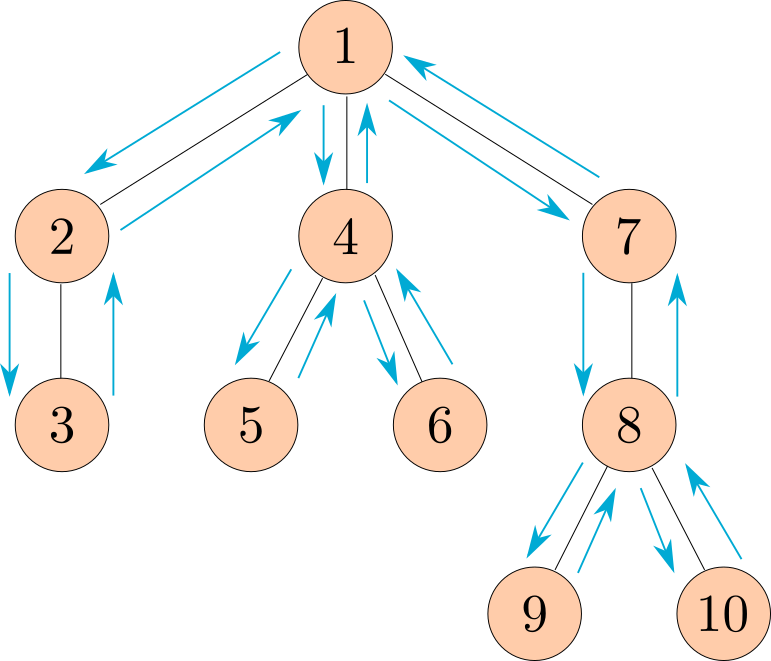

The following diagram shows the order that the nodes would get printed, with the arrows representing function calls.

preorder

This ordering of the nodes in a tree is called a preorder traversal.

def preorder(t):
    """Return a list of the entries in this tree in the order that they
    would be visited by a preorder traversal (see problem description).

    >>> numbers = Tree(8, [Tree(2), Tree(9, [Tree(4), Tree(5)]), Tree(6, [Tree(7)])])
    >>> print(numbers)
    8
      2
      9
        4
        5
      6
        7
    >>> preorder(numbers)
    [8, 2, 9, 4, 5, 6, 7]
    """
    labels = [t.label]
    for b in t.branches:
        labels.extend(preorder(b))
    return labels
class Tree:
    """A tree has a label and a list of branches.

    >>> t = Tree(3, [Tree(2, [Tree(5)]), Tree(4)])
    >>> t.label
    3
    >>> t.branches[0].label
    2
    >>> t.branches[1].is_leaf()
    True
    """
    def __init__(self, label, branches=[]):
        self.label = label
        for branch in branches:
            assert isinstance(branch, Tree)
        self.branches = list(branches)

    def is_leaf(self):
        return not self.branches

    def __repr__(self):
        if self.branches:
            branch_str = ', ' + repr(self.branches)
        else:
            branch_str = ''
        return 'Tree({0}{1})'.format(repr(self.label), branch_str)

    def __str__(self):
        return '\n'.join(self.indented())

    def indented(self):
        lines = []
        for b in self.branches:
            for line in b.indented():
                lines.append('  ' + line)
        return [str(self.label)] + lines

Use Ok to test your code:

python3 ok -q preorder

Q3: I Heard You Liked Functions...

Define a function cycle that takes in three functions f1, f2, and f3, as arguments. cycle will return another function g that should take in an integer argument n and return another function h. That final function h should take in an argument x and cycle through applying f1, f2, and f3 to x, depending on what n was. Here's what the final function h should do to x for a few values of n:

n = 0, return x
n = 1, apply f1 to x, or return f1(x)
n = 2, apply f1 to x and then f2 to the result of that, or return f2(f1(x))
n = 3, apply f1 to x, f2 to the result of applying f1, and then f3 to the result of applying f2, or f3(f2(f1(x)))
n = 4, start the cycle again applying f1, then f2, then f3, then f1 again, or f1(f3(f2(f1(x))))
And so forth.

Hint: most of the work goes inside the most nested function.

Hint: How can you utilize the % operator to achieve the cyclic behavior? Try computing n % 3 for all integers n from 0 to 12. What pattern do you notice?

def cycle(f1, f2, f3):
    """Returns a function that is itself a higher-order function.

    >>> def add1(x):
    ...     return x + 1
    >>> def times2(x):
    ...     return x * 2
    >>> def add3(x):
    ...     return x + 3
    >>> my_cycle = cycle(add1, times2, add3)
    >>> identity = my_cycle(0)
    >>> identity(5)
    5
    >>> add_one_then_double = my_cycle(2)
    >>> add_one_then_double(1)
    4
    >>> do_all_functions = my_cycle(3)
    >>> do_all_functions(2)
    9
    >>> do_more_than_a_cycle = my_cycle(4)
    >>> do_more_than_a_cycle(2)
    10
    >>> do_two_cycles = my_cycle(6)
    >>> do_two_cycles(1)
    19
    """
    def g(n):
        def h(x):
            i = 0
            while i < n:
                if i % 3 == 0:
                    x = f1(x)
                elif i % 3 == 1:
                    x = f2(x)
                else:
                    x = f3(x)
                i += 1
            return x
        return h
    return g

    # Alternative recursive solution
    def g(n):
        def h(x):
            if n == 0:
                return x
            return cycle(f2, f3, f1)(n - 1)(f1(x))
        return h
    return g

There are three main pieces of information we need in order to calculate the value that we want to return.

The three functions that we will be cycling through, so f1, f2, f3.
The number of function applications we need, namely n. When n is 0, we want our function to behave like the identity function (i.e. return the input without applying any of our three functions to it).
The input that we start off with, namely x.

The functions are the parameters passed into cycle. We want the return value of cycle to be a function ret_fn that takes in n and outputs another function ret. ret is a function that takes in x and then will cyclically apply the three passed in functions to the input until we have reached n applications. Thus, most of the logic will go inside of ret.

Solution:

To figure out which function we should next use in our cycle, we can use the mod operation via %, and loop through the function applications until we have made exactly n function applications to our original input x.

Use Ok to test your code:

python3 ok -q cycle

Check Your Score Locally

You can locally check your score on each question of this assignment by running

python3 ok --score

This does NOT submit the assignment! When you are satisfied with your score, submit the assignment to Gradescope to receive credit for it.

Submit Assignment

Submit this assignment by uploading any files you've edited to the appropriate Gradescope assignment. Lab 00 has detailed instructions.
